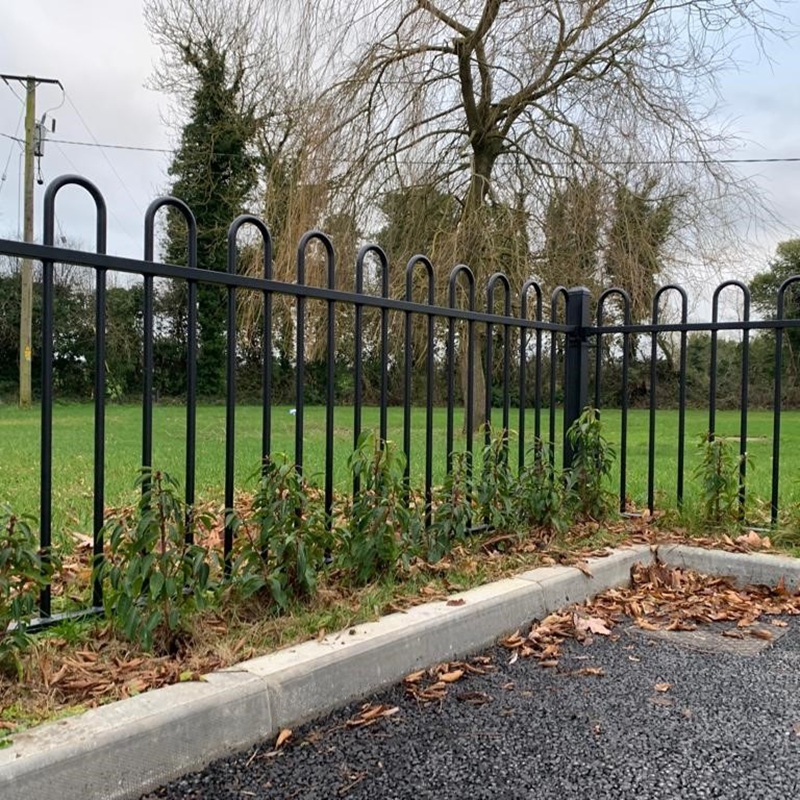

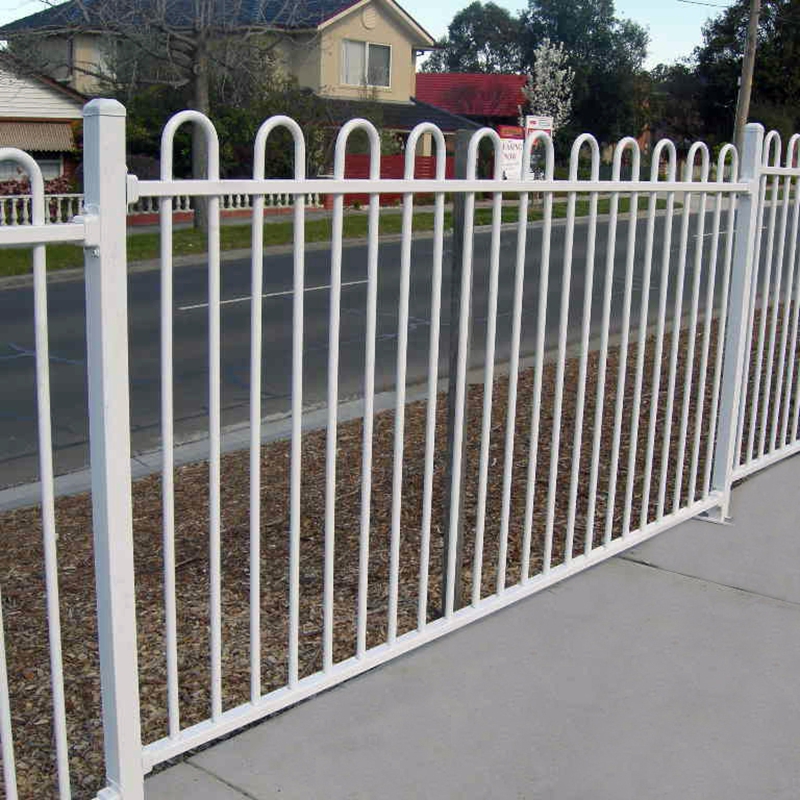

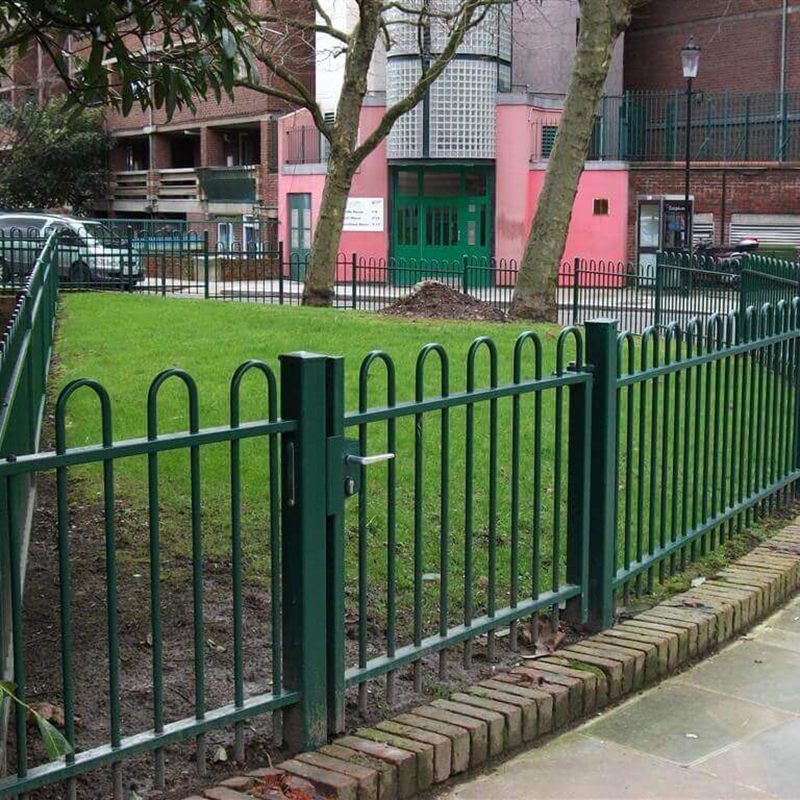

Product Overview
Loop top fencing features galvanized single/double loop woven wire construction, combining Victorian-era aesthetics with modern security for gardens, cemeteries, and estates. Commercial versions offer ≥6ft (1.83m) height configurations
Key Features
25% thicker 11-gauge steel (vs classic double-loop
Anti-climb woven wire pattern
Single-loop & double-loop variants
Infrared alarm wire channels.
|
Panel Length |
Panel Height |
Rails |
Rails thickness |
Rails No. |
Picket |
Picket distance |
Post size |
|
1.5m 1.8m 2m 2.4m 2.5m 3m |
1200mm 1500mm 1800mm 2000mm 2100mm 2400mm |
25x25mm 40x40mm 45x45mm |
1mm 1.2mm 1.5mm 1.8mm 2mm 2.5mm |
2pcs 3pcs 4pcs |
16x16x1mm/1.2mm 19x19x1.2mm/1.5mm Φ16x1.2/1.5mm Φ19x1.2/1.5mm |
100mm 125mm 140mm |
50x50x1.5mm/1.8mm/2mm 60x60x1.5mm/1.8mm/2mm 75x75x1.5mm/1.8mm/2mm |
|
Surface treatment: Powder coated after Hot-dipped galvanized tube welded |
|||||||
| Height | Roll Length | Wire Gauge | Finish |
| 91cm-122cm (36"-48") | 30m (100ft) | 9-gauge | Hot-dip galvanized |
| 183cm (72"/6ft) | Custom | 11-gauge | Powder-coated galvanized |
Packaging & Shipping
Standard: 100ft (30m) rolls with anti-corrosion wrapping
Custom: Site-specific cutting with CAD support
Shipping: Wood-pallet reinforced, includes 5-year warranty
