Defensive Barrier
Product Introduction

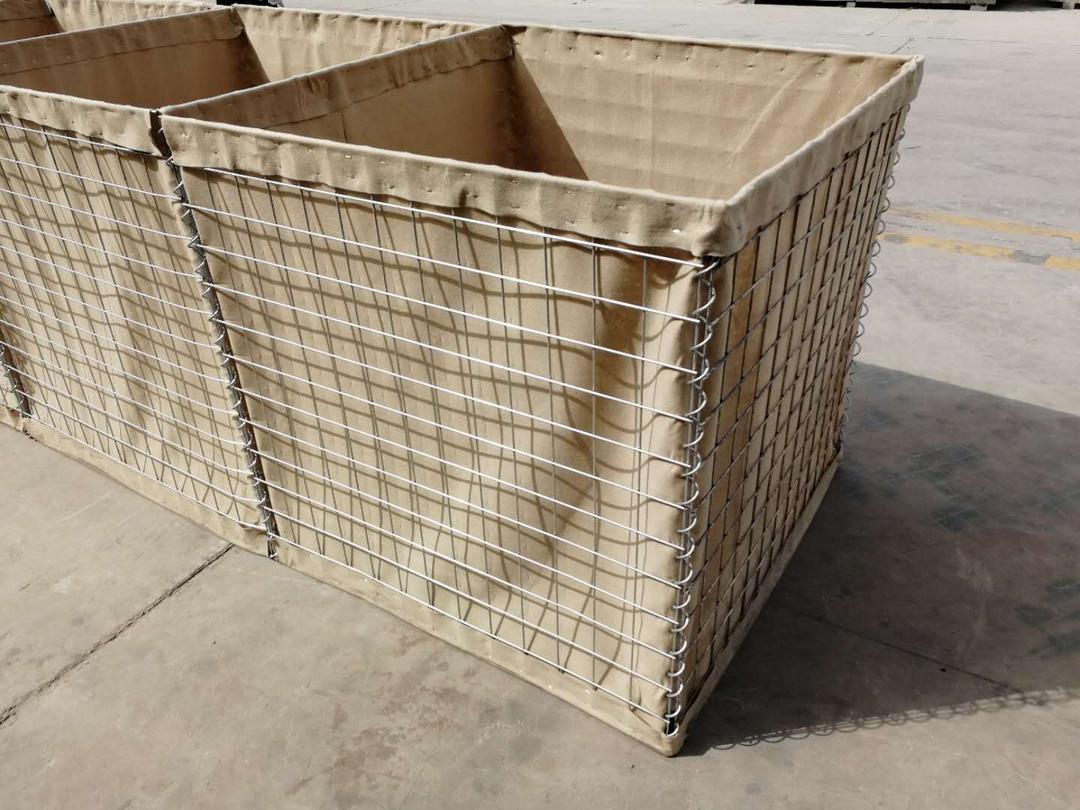

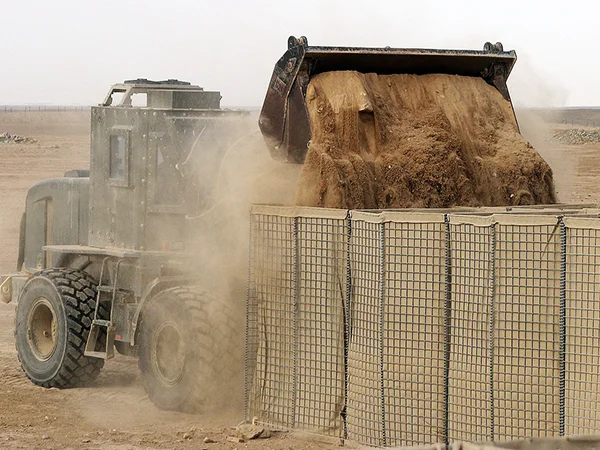

The Defensive Barrier is a modern protective wall system widely used for both military defense and civil engineering applications. It consists of a collapsible welded mesh frame lined with heavy-duty geotextile fabric, which can be filled with sand, earth, or gravel to form a solid and durable barrier.
Originally designed for military base protection, the system is now also applied in flood control, erosion prevention, and infrastructure reinforcement. Its modular design allows rapid deployment, easy stacking, and reusability.
Specifications
- Material: Welded galvanized steel wire + non-woven geotextile fabric
- Mesh Size: 50 × 100 mm, 76 × 76 mm, 100 × 100 mm (custom available)
- Wire Diameter: 4.0 mm / 4.5 mm / 5.0 mm
- Spring Wire: 4.0 mm / 4.5 mm
- Geotextile Color: Beige, green, grey, or military camouflage
- Finish: Hot-dipped galvanized / Galfan coated for anti-corrosion performance
- Connection: Spiral joints or pin system for easy assembly
Key Advantages
- Rapid Deployment: Units can be unfolded and installed quickly, reducing labor costs.
- High Strength & Durability: Galvanized steel mesh combined with heavy-duty fabric ensures long service life.
- Multi-functional Use: Effective against explosions, floods, and erosion.
- Modular & Flexible: Multiple units can be connected to build walls of varying height and length.
- Reusable & Economical: Can be dismantled, relocated, and reused multiple times.
Applications

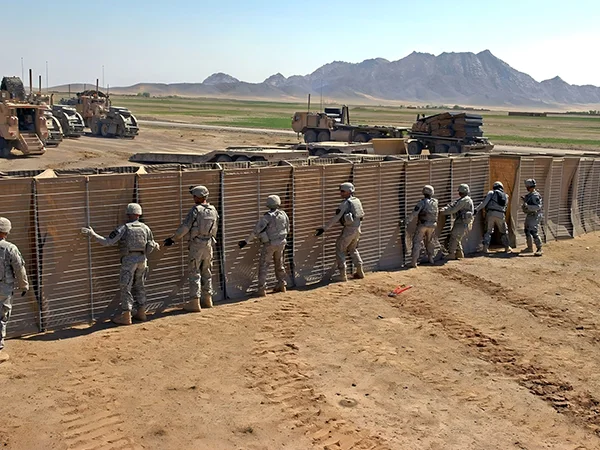

- Military Protection – Perimeter defense walls, watch post bunkers, blast-proof barriers.

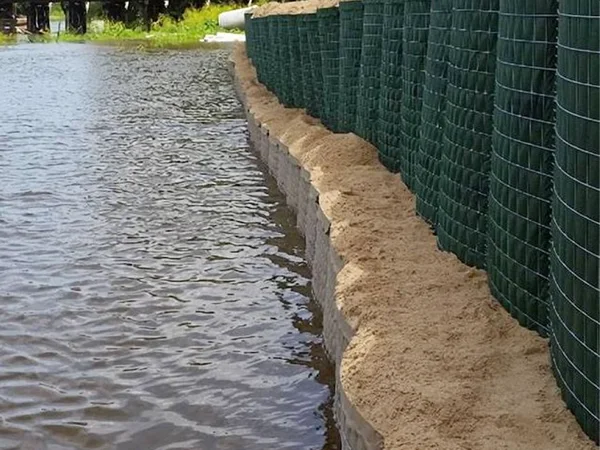

- Flood Control – Temporary or permanent flood barriers along rivers, lakes, and coastal areas.
- Infrastructure Protection – Protecting roads, bridges, and pipelines against landslides or explosions.
- Civil Engineering – Erosion control, retaining walls, and slope reinforcement.

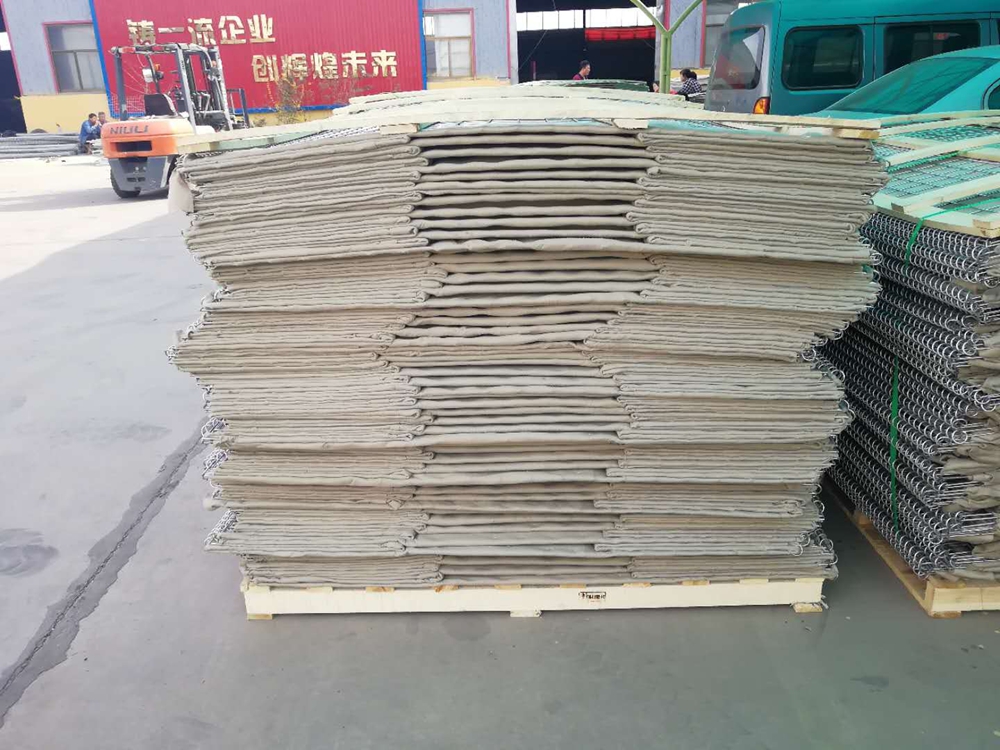

Packaging & Delivery
